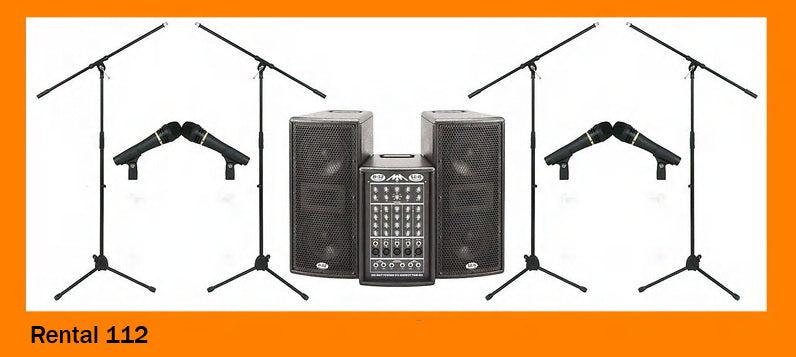

RENTALS: Matrix 200 compact PA system

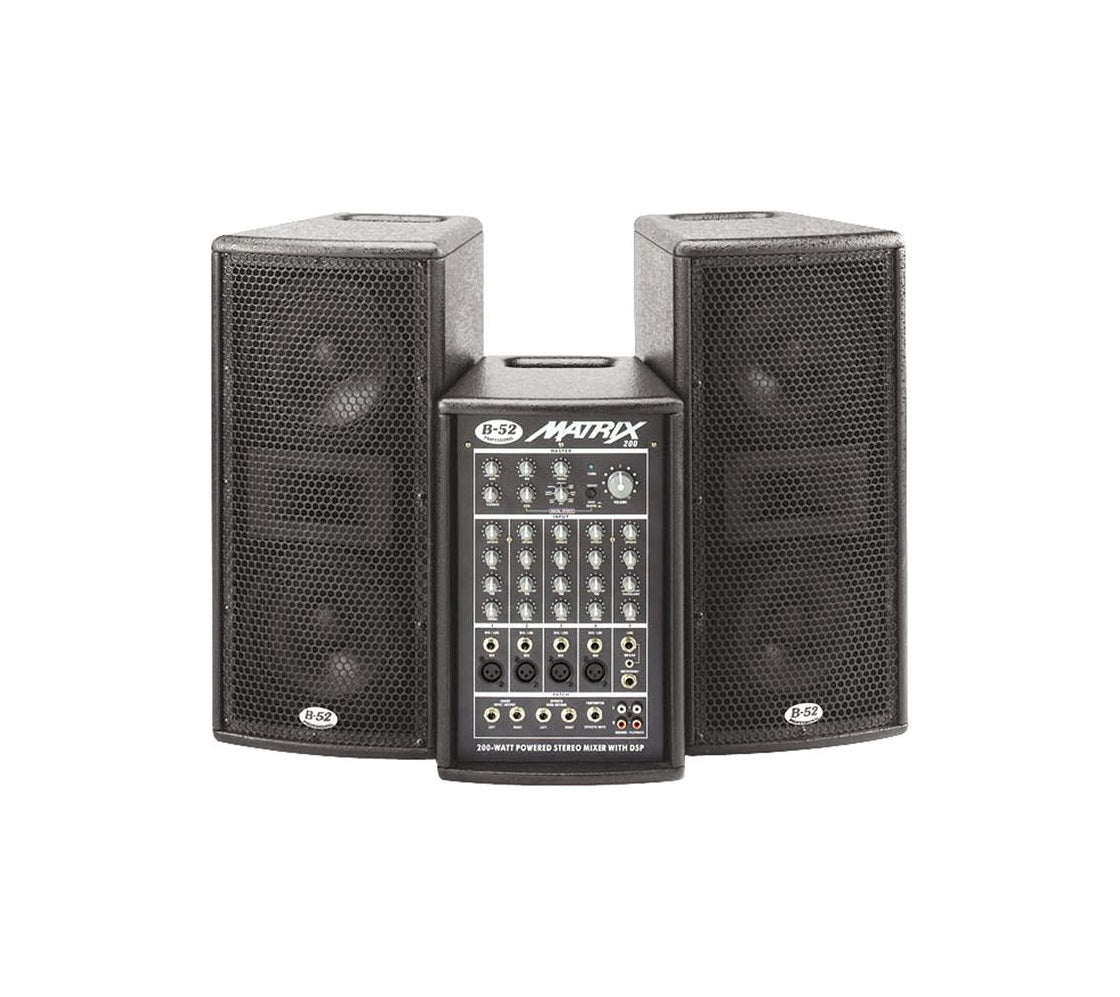

The MATRIX-200 is the most compact member of our popular B-52 MATRIX family of active systems. Compact, powerful and portable the MATRIX-200 delivers clean, accurate sound ideal for both stage and music playback applications. The MATRIX-200 has a true 200-watt RMS stereo amplifier, built in 5-channel mixer, studio-quality digital effects, phantom power and numerous patch inputs / outputs.

� 2x100w RMS with high headroom
� Output stage with discrete devices, not
integrated IC amps
� Comprehensive amplifier and speaker
protection circuitry
� Built-in stereo clip limiters
� Equalization customized to enhance and
optimize speaker system performance
� Output for stereo headphones on rear panel
� Very efficient cooling, utilizing a large
heatsink and two direct flow fans
� Dual voltage selector switch

5-channel mixer features
� Four channels with both balanced XLR mic
inputs and unbalanced �� jack line level inputs
— 15Vdc phantom power on balanced XLR inputs
for condenser microphones
— Pan, tone and effects level controls
� One stereo input channel for stereo sources
— Dual input with �� TRS jack and
3.5mm Jack to connect 2-channel source
— Dedicated mono �� jack instrument
input for acoustical instruments
— Pan/balance, tone and effects control
� Low distortion, low noise circuitry
� Playback input/output RCA connectors with
level control
� 3-band master EQ section

Built-in, 24-bit, 8-position digital effects with a level control on each channel allows you to conveniently incorporate the effects into your mix.
Effects offered:
� Chorus � Chorus/reverb � Slapback � Echo � Large room � Small room � Small hall � Large hall

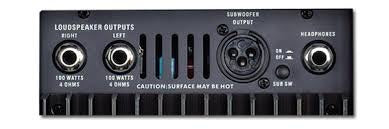

Speaker Outputs: Two 100-watt full-range outputs. The frequency response is equalized to optimize the acoustic performance of the MATRIX-200 speakers.

Subwoofer Output: Switchable XLR allows you to add a powered subwoofer to extend the low frequency range.
Headphones: A 1/4� TRS phone jack stereo output is included for monitoring by headphones.

Loudspeakers
� High power dual 6.5� woofers
� 1� compression driver (no piezos)
� Advanced crossover design with light-bulb protection circuirty on the tweeters
� Pole-mounting cup

Call or email beforehand for availability and current pricing
