Kluson

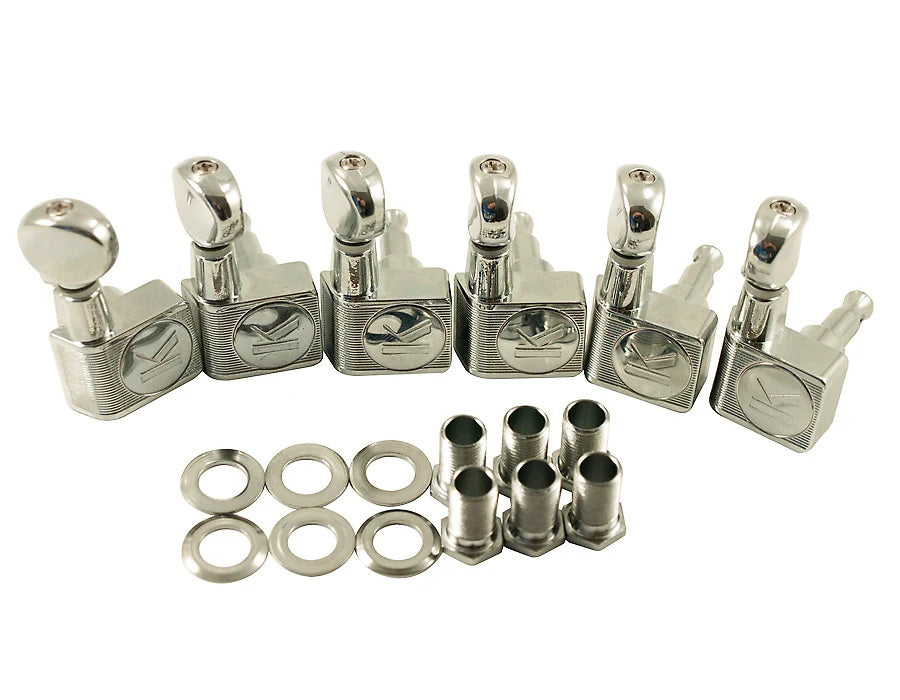

Kluson KCDF-3805CL machine heads

Kluson KCDF-3805CL machine heads

Regular price $90.00 CAD
Regular price Sale price $90.00 CAD
Sale Sold out

Introducing the NEW Kluson® 19:1 ratio tuning machine for right-handed instruments. These state of the art tuners are designed for usage on contemporary Fender® American Standard® and Standard series instruments that utilize the 2 location pins . These are drop-in, no modification required upgrades for your Fender® Standard instrument at quite an affordable price. Uses the common modern 25/64 in. (10mm) peghole with a hex head type screw-in bushing without a mounting screw. All mounting hardware is included.

DOES NOT fit Fender guitars or necks that are made outside the US and Mexico.

Does not fit Squier.

Additional Product Information
Important Specs and Dimensions:
  • Peg Hole requirement = 25/64 in. (10mm)
  • Gear Ratio = 19:1
  • Bushing Type = Hex Head screw-in bushing
  • Footprint = 57/64 in (22.65mm) X 21/32 in. (16.8mm)
  • Mounting Hole Size Requirement for pins = 3/32 in (2.41mm) bit
  • Collar Diameter = 25/64 in. (9.95mm)
  • Collar Depth = 3/8 in. (9.68mm)
  • Post Height from housing back = 1 1/16 in. (26.87mm) including dome top
  • String Thru location = 29/32 in. from back of housing to hole ctr.
  • Button Shaft length from Housing to button = 13/32 in. (10.3mm)
  • Overall Button Shaft Length including Button = 15/16 in. (24mm)
