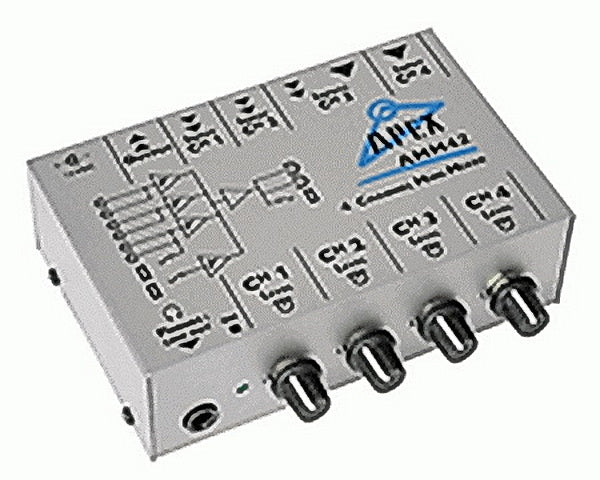

Apex AMM42 Micro-mixer

Problem - you need to mix a CD and a VCR's audio output with a synthesizer and the line output of a bass amp and send it all to a PC or cassette deck. Solution - connect an AMM42 between your audio sources and the PC or cassette deck. Levels can be mixed and a headphone jack lets you monitor the mix. Four input channels, Ch.1 with a ¼" unbalanced input, Ch.2 with a choice of one ¼" or dual L&R RCA inputs, and ch. 3 & 4 with dual L&R RCA inputs only Four Level controls, one for each channel Dual L&R RCA Output connectors ¼" Line/Stereo Headphone output jack Active preamplification and mixing circuitry Input Impedance = 10K Ohms unbalanced (all inputs). Ch. 1/2/3&4 Input Gains = 32dB/26dB/26dB & 26dB S/N Ratio = >90dB THD = <.008% IMD(SMPTE) = <.008% Power = 12VDC adaptor (included)
